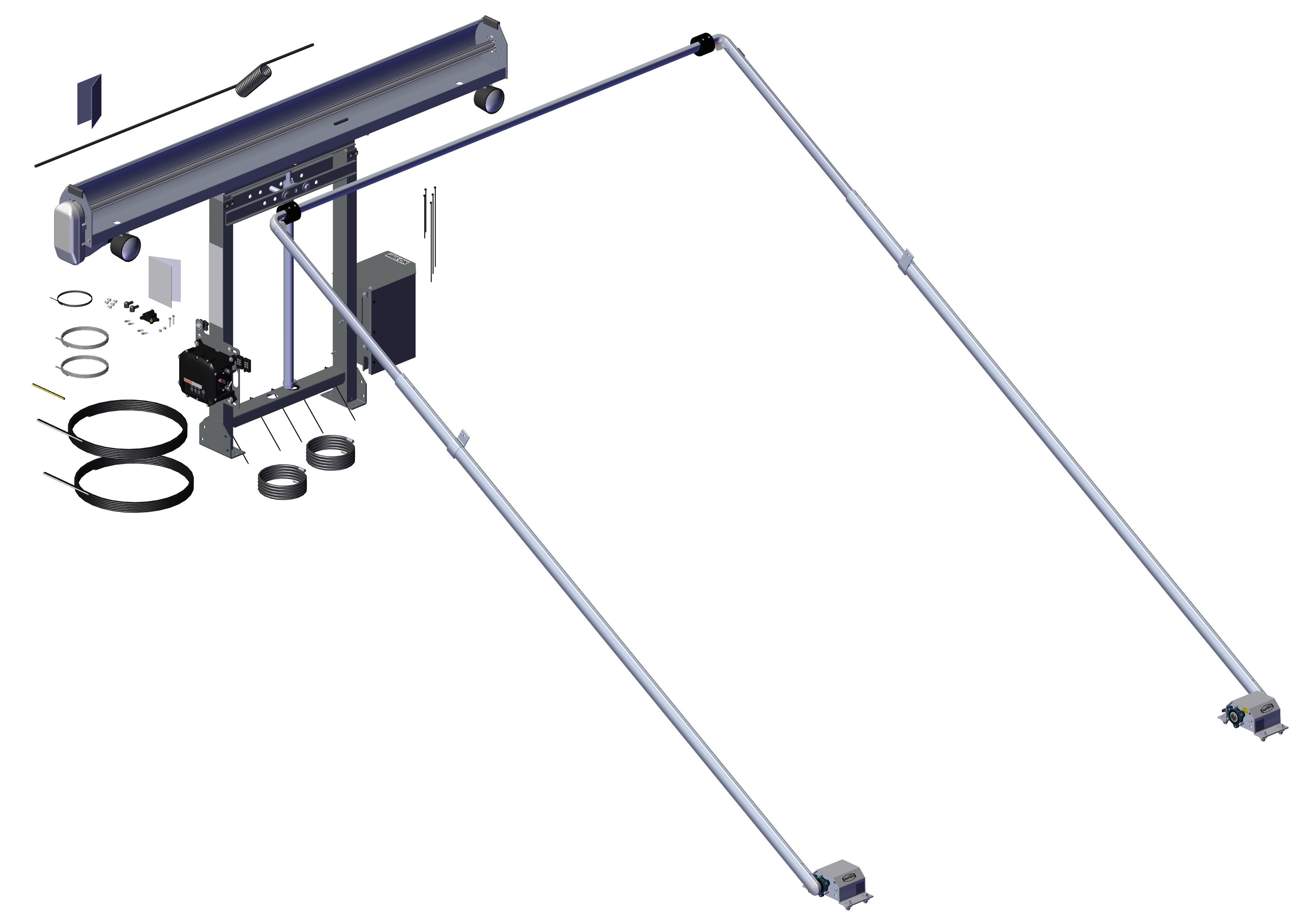

DC400, SD Adjustable Tower, 6 Spring Top Mount Pivot, Wide Bow Set
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 101531 | Tower Assembly. 12v SDX Single Stage w/Single Valve Pump & Control Box SDX S/N: | 1 |
| 2 | 76720 | Bow Set. 103 1/2" Wide Top Tube and 103 1/2" Side Arms | 1 |
| 3 | 46590 | Pivot Set. Top Mount 6 Spring Pivot w/120" Tubes (B1-46591/B2-46592) | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 11328 | Wire. 2 Stage Tower Coil 110" - Assembled | 1 |
| 2 | 36479 | Spool Kit. Super Duty Tarp Spool w/98" Integrated Housing | 1 |
| 3 | 104103 | Light. Work Light LED 12V | 2 |
| 4 | 11345 | Wire. 16 ga. 2-Conductor (per foot) | 2 |
| 5 | 11330 | Wire. 6 Ga. Dual Conductor - (per ft) | 2 |
| 6 | 39004 | Tower. Stationary Tower for Integrated Housing | 1 |
| 7 | 101630 | Instructions. DC Series Installation | 1 |
| 8 | 17913 | Breaker. 100 amp Manual Reset Breaker Kit for 24V & 12V Integrated pump | 1 |
| 9 | 19865 | Control Box. Wireless Black Control Box - 12/24V Waste | 1 |
| 10 | 17918 | Breaker. 35A Outdoor Manual Reset Circuit Breaker | 1 |
| 11 | 39520 | Cylinder. 1.5" Bore x 36" Stroke DA. Single Flange Mount | 1 |
| 12 | 39612 | Hydraulic Power Unit. 12V. 1 Valve | 1 |
| 13 | 39615 | PUMP COVER. POLY SIDE COVER FOR VERT MOUNT PUMP | 1 |
| 14 | 10794 | Bracket. Pump Mount Cover Steel 1/8x16x13 7/8" | 1 |
| 15 | 10778 | Bracket. Steel Vert Pump Mount Cover | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 76870 | Bow Tube. 103 1/2" AL Wide Top Tube for Tarp Bow | 3 |
| 2 | 76810 | Tarp Flange for Bow Tube (Pair) | 2 |
| 3 | 76800 | Casting. Aluminum Corner - 90 Degree With Fasteners and Tether | 2 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 76831 | Bracket. Pivot Arm Tie Down | 2 |
| 2 | 46220 | Pivot Tube. 120" w/Set Screws (each) | 2 |
| 3 | 46480 | Pivot Assembly. 6 Spring Top Mount Pivot w/out Tube - Passenger Side | 1 |
| 4 | 46470 | Pivot Assembly. 6 Spring Top Mount Pvt w/out Tube - Drivers Side | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 10122 | Super Duty Motor 12V. 5 Year Warranty :S/N: | 1 |
| 2 | 36164 | Housing. Spool 98" Aluminum Integrated Housing | 1 |
| 3 | 31030 | Axle. 97" Pre-Threaded Tarp Axle w/Stub Shaft | 1 |
| 4 | 31050 | Bearing. 3/4" Flanged Axle Bearing with bolts | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 19801 | RF Transmitter/FOB. 433MHz. Gen1 Motor Relay | 2 |
| 2 | 101786 | Instructions. Push button Control Box | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 102832 | Motor. Replacement Motor for Hydraulic Pump 12 V (39612 & 39712) MTE39200513 | 1 |
| 2 | 102079 | Solenoid. 12VDC Start Switch for Power Unit (39612 & 39712) MTE39002136 | 1 |
| 3 | 102078 | Coil. 12VDC for Power Unit (39612 & 39712) MTE39002301 | 2 |
| 4 | 102080 | Valve. 3P4W Tandem Center Directional Power Unit (39612)MTE38502324 | 1 |
| 5 | 102073 | Cap Kit (Cap and Rubber Grommet) | 1 |
| 6 | 102074 | Tank Kit. 1 Gallon MTE | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 103533 | Tether. Cable with Install Label for 90 degree corner | 1 |
| 2 | 18719 | Nut. 1/4-20 Cap Conn Nut Clear Zinc - Post bolt for 90 degree corners | 2 |
| 3 | 18718 | Bolt. 1/4-20 x 1 3/16 Bolt Clear Zinc - Post bolt for 90 degree corners | 2 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 46370 | Pivot Pin. for 5 & 6-Spring Roller Bearing - Passenger | 1 |
| 2 | 18540 | Pin. 1/2" x 5-1/4" Clevis | 1 |
| 3 | 47800 | Bearing. Carrier Underbody Flanged | 2 |
| 4 | 47230 | Spring. Spiral Torsion Spring 1 1/4" | 6 |
| 5 | 46400 | Bracket. for 6-Spring Top Mount Pivots-each | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 46360 | Pivot Pin. for 5 & 6 Spring Roller Bearing - Drivers Side | 1 |
| 2 | 47800 | Bearing. Carrier Underbody Flanged | 2 |
| 3 | 18540 | Pin. 1/2" x 5-1/4" Clevis | 1 |
| 4 | 47230 | Spring. Spiral Torsion Spring 1 1/4" | 6 |
| 5 | 18631 | Nut. 1/2" Nylock Nut | 4 |
| 6 | 18412 | Washer. 1/2" Flat Zinc | 4 |
| 7 | 18296 | Bolt. 1/2" x 1 1/2" Hex Head Bolt | 4 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 18260 | Bolt. 5/16" x 5/8" Button Head Bolt - Zinc Plated | 5 |
| 2 | 18412 | Washer. 1/2" Flat Zinc | 6 |
| 3 | 18245 | Bolt. T-Bolt 1/2-13NCx1.75 for GAB | 6 |
| 4 | 18631 | Nut. 1/2" Nylock Nut | 6 |
| 5 | 36300 | Bumper. Rubber Bumper for Tarp Spool (each) | 2 |
| 6 | 36331 | Bracket. Int Housing Aluminum Endcaps - Drivers Side | 2 |
| 7 | 18120 | Bolt. 3/8" x 1-1/2" Thread Cutting Screw Hex Washer Hd | 6 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 18628 | Nut. Nylock nut 3/8" Jamb Nut | 2 |
| 2 | 18242 | Bolt. 3/8"-16 x 1 1/8" Button Head | 2 |
