Bill of Materials List

DC204, TM Single Stage Narrow Tower, 5 Spring 84" Ext Pivot, 45° elbows, Wide Bow Set, Fits Smaller Cab Chassis (Ford SuperDuty, Ram & GM)

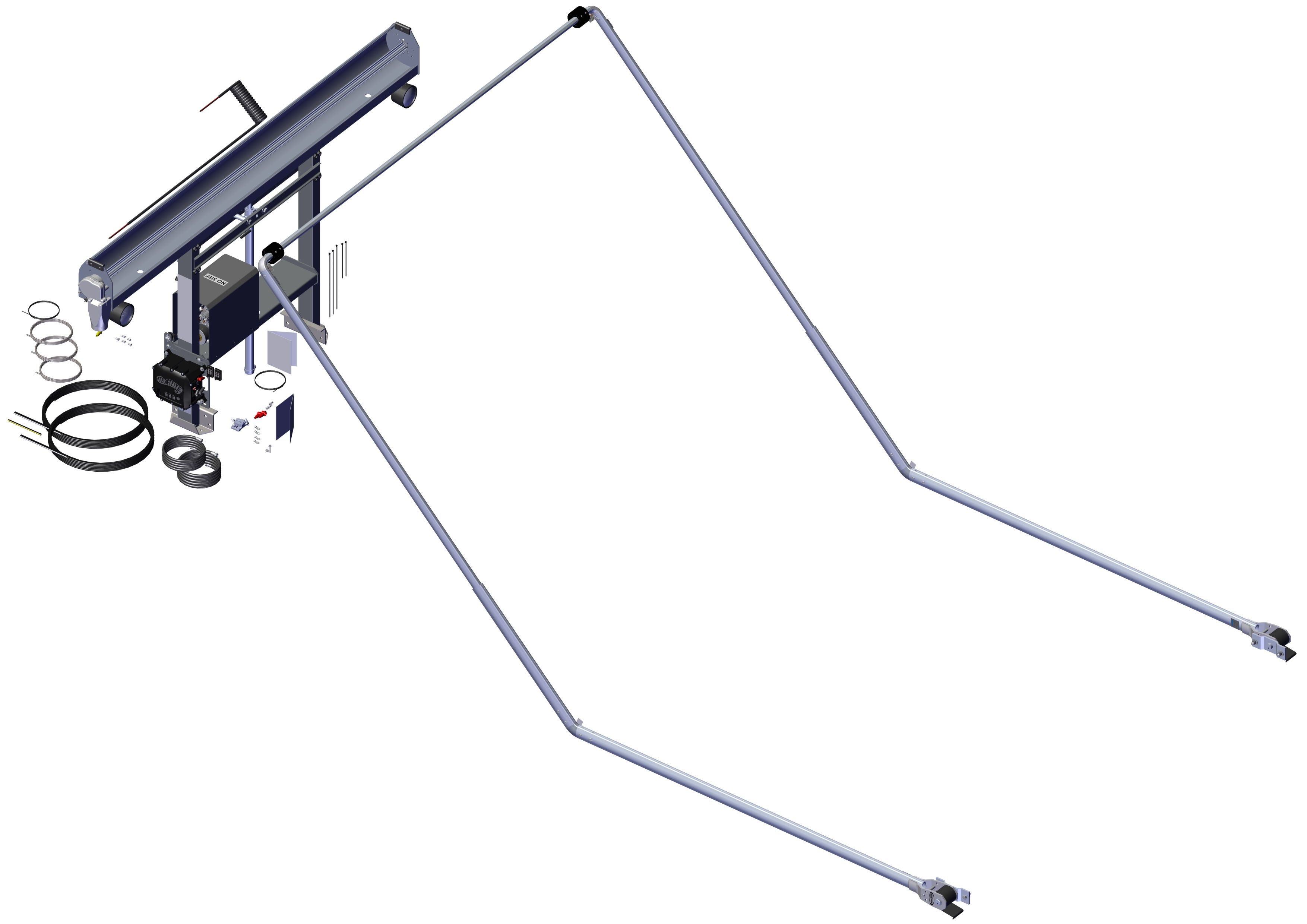

main product image

Product #: 69204

Bill of Materials List

69204

Bom IdPart #DescriptionQty
1 102875 Tower. TarpMaster Adjustable Narrow Frame w/ Pump & Control Box 1
2 103314 Pivot Set. External Mount 5 spr Drilled for 45 offset 1
3 76720 Bow Set. 103 1/2" Wide Top Tube and 103 1/2" Side Arms 1
4 76916 Pivot. 45 Low Arm Elbow Kit 32" Extension 1
Bill of Materials List

102875

Bom IdPart #DescriptionQty
1 11328 Wire. 2 Stage Tower Coil 110" - Assembled 1
2 36484 Spool Kit. TarpMaster Tarp Spool w/98" Integrated 98" Housing for Tower 1
3 104103 Light. Work Light LED 12V 2
4 39610 Benlee. Pump Cover. Black Housing for Hydraulic Pump on Towers- HRZ 1
5 11330 Wire. 6 Ga. Dual Conductor - (per ft) 1
6 19865 Control Box. Wireless Black Control Box - 12/24V Waste 1
7 17918 Breaker. 35A Outdoor Manual Reset Circuit Breaker 1
8 39612 Hydraulic Power Unit. 12V. 1 Valve 1
9 39520 Cylinder. 1.5" Bore x 36" Stroke DA. Single Flange Mount 1
10 17913 Breaker. 100 amp Manual Reset Breaker Kit for 24V & 12V Integrated pump 1
Bill of Materials List

76720

Bom IdPart #DescriptionQty
1 76870 Bow Tube. 103 1/2" AL Wide Top Tube for Tarp Bow 3
2 76810 Tarp Flange for Bow Tube (Pair) 2
3 76800 Casting. Aluminum Corner - 90 Degree With Fasteners and Tether 2
Bill of Materials List

76916

Bom IdPart #DescriptionQty
1 76915 Casting. Extreme Duty 45 Elbow for Pivot Tube 2
2 76917 Pivot. Pivot Tube Extension. 32.5" 2
Bill of Materials List

103314

Bom IdPart #DescriptionQty
1 103315 Pivot. Assembly Arm for 4645D Drilled for 45 offset 1
2 103316 Pivot. Assembly Arm for 4645P Drilled for 45 offset 1
Bill of Materials List

36484

Bom IdPart #DescriptionQty
1 10310 TarpMaster Motor 12V. 5 Year Warranty :S/N: 1
2 36164 Housing. Spool 98" Aluminum Integrated Housing 1
3 31030 Axle. 97" Pre-Threaded Tarp Axle w/Stub Shaft 1
4 31050 Bearing. 3/4" Flanged Axle Bearing with bolts 1
Bill of Materials List

19865

Bom IdPart #DescriptionQty
1 19801 RF Transmitter/FOB. 433MHz. Gen1 Motor Relay 2
2 101786 Instructions. Push button Control Box 1
Bill of Materials List

39612

Bom IdPart #DescriptionQty
1 102832 Motor. Replacement Motor for Hydraulic Pump 12 V (39612 & 39712) MTE39200513 1
2 102079 Solenoid. 12VDC Start Switch for Power Unit (39612 & 39712) MTE39002136 1
3 102078 Coil. 12VDC for Power Unit (39612 & 39712) MTE39002301 2
4 102080 Valve. 3P4W Tandem Center Directional Power Unit (39612)MTE38502324 1
5 102073 Cap Kit (Cap and Rubber Grommet) 1
6 102074 Tank Kit. 1 Gallon MTE 1
Bill of Materials List

76800

Bom IdPart #DescriptionQty
1 103533 Tether. Cable with Install Label for 90 degree corner 1
2 18719 Nut. 1/4-20 Cap Conn Nut Clear Zinc - Post bolt for 90 degree corners 2
3 18718 Bolt. 1/4-20 x 1 3/16 Bolt Clear Zinc - Post bolt for 90 degree corners 2
Bill of Materials List

76915

Bom IdPart #DescriptionQty
1 103306 Bolt. 1/4-20 x 1 9/16 Bolt Clear Zinc - Post bolt for 45 degree extreme corners 4
2 18719 Nut. 1/4-20 Cap Conn Nut Clear Zinc - Post bolt for 90 degree corners 4
3 104205 Tether. Extreme Duty Elbows 1
Bill of Materials List

103315

Bom IdPart #DescriptionQty
1 45350 Pivot Pin. 5-Spring 1
3 47230 Spring. Spiral Torsion Spring 1 1/4" 5
4 18560 Pin. 1/2 x 4 1/8 Special Clevis 1
Bill of Materials List

103316

Bom IdPart #DescriptionQty
1 47230 Spring. Spiral Torsion Spring 1 1/4" 5
2 18560 Pin. 1/2 x 4 1/8 Special Clevis 1
3 45350 Pivot Pin. 5-Spring 1
Bill of Materials List

36164

Bom IdPart #DescriptionQty
1 18260 Bolt. 5/16" x 5/8" Button Head Bolt - Zinc Plated 5
2 18412 Washer. 1/2" Flat Zinc 6
3 18245 Bolt. T-Bolt 1/2-13NCx1.75 for GAB 6
4 18631 Nut. 1/2" Nylock Nut 6
5 36300 Bumper. Rubber Bumper for Tarp Spool (each) 2
6 36331 Bracket. Int Housing Aluminum Endcaps - Drivers Side 2
7 18120 Bolt. 3/8" x 1-1/2" Thread Cutting Screw Hex Washer Hd 6
