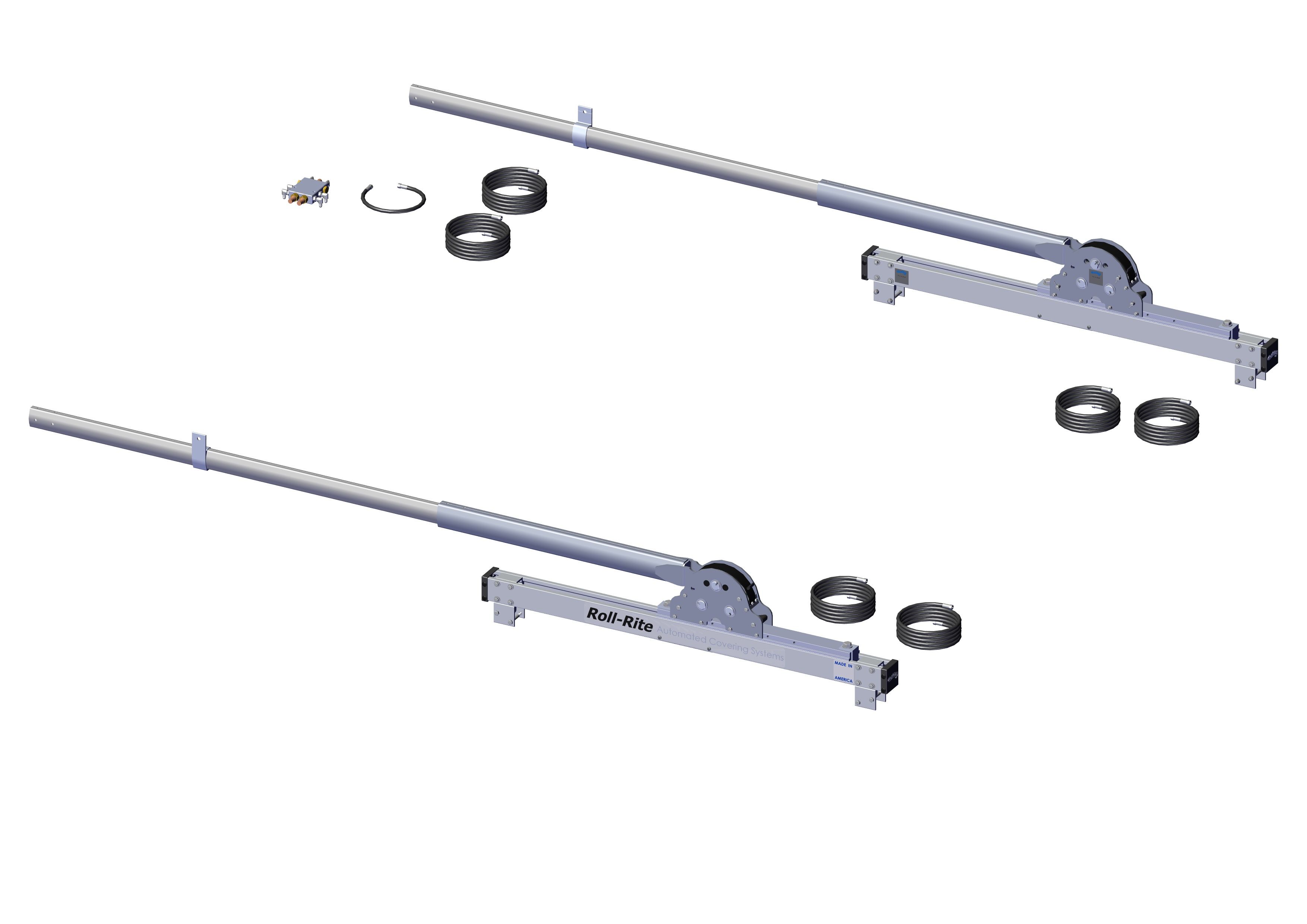

Pivot Set, 20'' Narrow Profile Sliding 6 Spring Pivot Set w/ 96" Tubes
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 47732 | Pivot Passenger. Narrow Side Assembled Sliding Pivot w/Out Tube | 1 |
| 2 | 47731 | Pivot Driver. Narrow Side Assembled Sliding Pivot w/out Tubes | 1 |
| 3 | 102420 | Pivot Tube. 96" Tube Drilled for Set Screws & for 45 Degree Offset | 2 |
| 4 | 76831 | Bracket. Pivot Arm Tie Down | 2 |
| 5 | 39092 | Hose. 14.5" Replacement Bleeding Hose | 1 |
| 6 | 39090 | Manifold. Hydraulic Synchronizing | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 47733 | Pivot Assembly. Sliding Pivot Spring Pack Narrow Profile - Driver | 1 |
| 2 | 47735 | Pivot Assembly. Sliding Pivot Narrow Assembly Mount w/Cylinder | 1 |
| 3 | 39098 | Adapter. 90 #4 Male Tube to #6 Adj Male Oring | 2 |
| 4 | 39297 | Adapter. 90 #4 Male tube to #4 37° female swivel | 2 |
| 5 | 18223 | Bolt. 5/16" x 3 1/2" Hex Head Bolt zinc Grade 5 | 4 |
| 6 | 18613 | Nut. 5/16" Nylock Nut | 4 |
| 7 | 36314 | Cap. End cap w/ logo for Nrw Sliding Pivot | 2 |
| 8 | 18308 | Rivet. Push Rivet for Pump Cover - Plastic | 8 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 47734 | Pivot Assembly. Sliding Pivot Spring Pack Narrow - Passenger | 1 |
| 2 | 47735 | Pivot Assembly. Sliding Pivot Narrow Assembly Mount w/Cylinder | 1 |
| 3 | 39098 | Adapter. 90 #4 Male Tube to #6 Adj Male Oring | 2 |
| 4 | 39297 | Adapter. 90 #4 Male tube to #4 37° female swivel | 2 |
| 5 | 18223 | Bolt. 5/16" x 3 1/2" Hex Head Bolt zinc Grade 5 | 4 |
| 6 | 18613 | Nut. 5/16" Nylock Nut | 4 |
| 7 | 36314 | Cap. End cap w/ logo for Nrw Sliding Pivot | 2 |
| 8 | 18308 | Rivet. Push Rivet for Pump Cover - Plastic | 8 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 47784 | Cylinder. Hydraulic only for 2' Sliding Pivot (each) | 1 |
| 2 | 18645 | Nut. 1- 1/8" -12 Nylock Nut | 2 |
| 3 | 18420 | Washer. 1-1/8" SAE Flat Zinc | 2 |
| 4 | 100389 | Pivot Assembly. Sliding Pivot Narrow Assembly Mount | 1 |
| 5 | 46734 | Bracket. Guide Retainer for Narrow Sliding Pivot Sliding Rail | 2 |
| 6 | 18417 | Washer. 5/8" Flat SAE. Zinc | 2 |
| 7 | 18712 | Bolt. 5/8" x 2 1/4 Hex Head | 2 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 46731 | Side Rail. Slide Rail for Narrow Sliding Pivot 28.25" | 1 |
| 2 | 46889 | Bushing. Sliding Bushing for Nrw Pivot 14.125 Each | 4 |
| 3 | 18613 | Nut. 5/16" Nylock Nut | 4 |
| 4 | 46732 | Extrusion. Outer Ext for Nrw sliding pivot 59.25" | 2 |
| 5 | 46733 | Extrusion. Pivot Mount for Nrw sliding pivot 3" | 2 |
| 6 | 18400 | Washer. 5/16" USS Flat Zinc | 16 |
| 7 | 18223 | Bolt. 5/16" x 3 1/2" Hex Head Bolt zinc Grade 5 | 4 |
| 8 | 102706 | Bolt. 5/16" x 5/8" Hex Head Bolt zinc Grade 5 | 8 |
